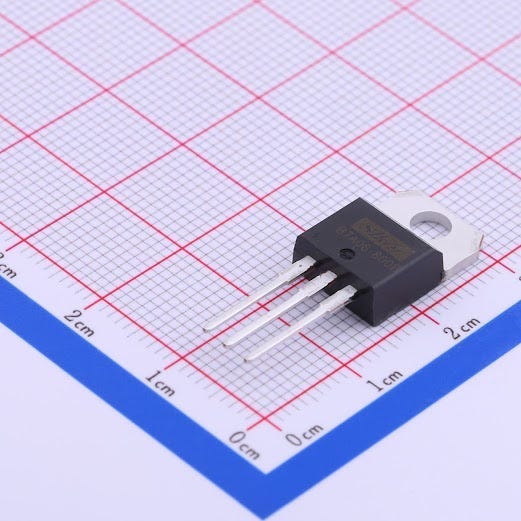

Power Meets Precision: Explore the BTA16–800B TRIAC with 16A Current Handling and Advanced 3/4-Quadrant Triggering



Description

Versatile and Reliable: BTA/BTB16–800 Triac Series for AC Switching & Control

The BTA/BTB16–800 triac series is designed for general-purpose AC switching, available in both through-hole and surface-mount packages, offering flexibility for a wide range of applications.

Ideal for use as ON/OFF switches in systems such as:

• Static relays
• Heating regulation systems
• Induction motor starters
• Phase control applications including light dimmers and motor speed controllers

For inductive loads, the snubberless BTA/BTB…W versions are specially recommended — engineered with high commutation performance to ensure stable operation without the need for external protection components.

The BTA series features an internal ceramic insulator, providing a voltage-insulated tab rated at 2500V RMS, fully compliant with UL safety standards, making it a robust and reliable solution for high-voltage isolation and safety in demanding environments.

Whether you’re designing industrial systems or consumer electronics, the BTA/BTB16–800 series delivers reliable switching, thermal efficiency, and easy integration for AC power control.

Key Features — BTA/BTB16–800 Series TRIAC

• High voltage blocking capability (up to 800V) for robust AC switching
• Low gate sensitivity for superior noise immunity in harsh environments
• Wide operating temperature range with Tj(max) = 150°C, ideal for high-heat applications
• High minimum gate trigger current (IGT) ensures resistance to false triggering from noise
• Planar passivated design for enhanced reliability and voltage ruggedness
• Four-quadrant triggering for flexible control in any configuration
• Internally insulated package with 2500V RMS isolation, compliant with global safety standards
• Isolated mounting base simplifies thermal and electrical design integration

Typical Applications

• Home appliances: washing machines, vacuum cleaners, massage devices, air conditioners
• Motor control systems: speed regulators, compressor starters, and universal motor switching
• Solid-state relays and other general-purpose AC switching
• High-temperature environments requiring reliable operation up to 150°C

Quick Reference Data

Symbol Parameter Conditions Max Unit VDRM Repetitive peak off-state voltage — 800 V IT(RMS) RMS on-state current (full sine wave) TC = 110°C 16 A ITSM Surge on-state current f = 50/60 Hz, tp = 16.7/20 ms 160 / 168 A

This TRIAC series is an ideal choice for designers seeking durable, high-performance switching solutions in demanding thermal and noise-sensitive environments.
