Protect Your Compact Devices: Slkor SLESD5451X Delivers Ultimate Ultra-Low Capacitance ESD Defense

 As electronic devices continue to evolve toward thinner, more integrated designs, ESD protection faces new challenges. Traditional solutions often force trade-offs between capacitance, size, and protective performance.

Slkor’s SLESD5451X ESD protection diode offers a breakthrough solution: combining a 5V reverse working voltage (VRWM), 5.6V minimum breakdown voltage (VBR), ultra-low 0.1µA leakage current (IR), 10V clamping voltage (VC), and 5pF ultra-low junction capacitance (CJ) — all in a DFN1006 ultra-compact package. This device delivers high-performance, space-efficient ESD protection for modern consumer electronics, IoT devices, and medical applications.

This article explores how the SLESD5451X redefines protection standards for compact electronics, diving into its technical features, application scenarios, and emerging industry trends.

Technical Breakthrough: The Art of Balancing Ultra-Low Capacitance and Low Leakage Current

 The core challenge for ESD protection devices is efficiently discharging electrostatic energy while minimizing impact on circuit performance. The SLESD5451X is engineered to master this balance:

1. 5pF Ultra-Low Junction Capacitance: The Invisible Guardian of High-Frequency Signals
 Junction capacitance (CJ) is a key factor influencing signal integrity in ESD protection devices. In wireless communication modules (Bluetooth, Wi-Fi), RFID, or high-speed data interfaces, excessive capacitance can cause signal attenuation, edge delays, or data errors.

With a 5pF junction capacitance, the SLESD5451X sets a new industry standard for minimizing these effects. Even at frequencies above 100MHz, it keeps signal distortion extremely low. For example, in a 2.4GHz Bluetooth module, traditional ESD devices often exceed 20pF, whereas the SLESD5451X’s 5pF capacitance reduces insertion loss by over 3dB, significantly improving wireless transmission reliability.

2. 0.1µA Ultra-Low Leakage Current: Extending the Battery Life of Portable Devices
 For battery-powered portable devices — such as TWS earphones and smartwatches — leakage current (IR) directly impacts standby time. The SLESD5451X achieves an impressive 0.1µA leakage current at 5V working voltage, which is 90% lower than the industry average of 1µA.

For instance, in a TWS earphone charging case with a 40mAh battery, if 10 protection devices each have 0.1µA leakage, the cumulative annual self-discharge is only ~0.087mAh, almost negligible.

This ultra-low leakage is particularly critical in medical wearables, such as continuous glucose monitors, where even minor power noise can affect measurement accuracy. The SLESD5451X ensures stable baseline readings and precise measurements, keeping devices reliable while maximizing battery life.

3. Precise Voltage Protection: Seamless Transition from Operation to Protection
 The VRWM of the SLESD5451X is 5V, perfectly aligning with typical 3.3V/5V system voltages, keeping the device in a high-impedance state during normal operation. When an ESD event occurs, its minimum breakdown voltage (VBR) of 5.6V ensures a rapid conduction path to ground, safeguarding the circuit from overvoltage.

Its 10V clamping voltage (VC) limits the ESD impact within a safe range. For example, in a 5V-powered microcontroller (MCU), typical IO port tolerance is 5.5V. The SLESD5451X’s 10V clamping voltage effectively prevents overvoltage breakdown, while its fast response time (<1ns) guarantees reliable protection even against nanosecond ESD pulses.

Design Advantage: The Fusion of Miniaturization and High Performance

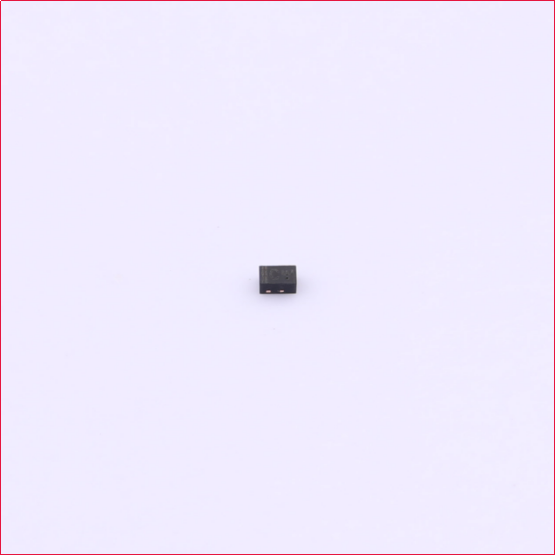

 The SLESD5451X features a DFN1006 package (1.0mm × 0.6mm, thickness 0.4mm), making it one of the most compact ESD solutions on the market today. Compared to the traditional SOT-23 package (2.9mm × 1.3mm), it reduces footprint by 75% and thickness by 40%, enabling seamless integration into highly packed modern electronic devices.

For instance, in a smartphone mainboard with over 90% space utilization, the miniaturized SLESD5451X allows engineers to deploy protection devices directly in tight spots, such as headphone jacks and USB-C interfaces, without redesigning the layout.

Additionally, the DFN package’s bottom-side thermal pad efficiently dissipates heat from ESD events, preventing localized overheating and device aging. During continuous ESD testing, the SLESD5451X withstands over 1,000 ±8kV contact discharges while maintaining stable electrical performance. This high reliability is crucial for industrial applications and high-static environments, such as synthetic fiber plants.
