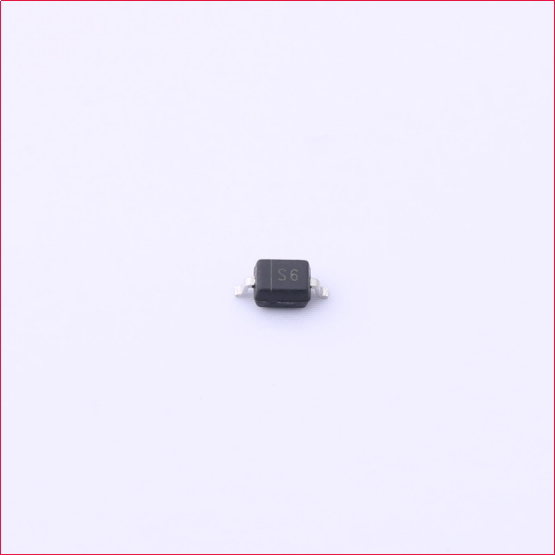

SD103CWS Schottky Diode - High Efficiency, Reliable Performance for Modern Electronics

 In the “energy pulse” of electronic systems, diodes function like precision valves, regulating the flow and rhythm of electricity. The Slkor Schottky diode SD103CWS, with its key advantages of high reverse voltage tolerance, low forward voltage drop, and extremely low reverse leakage, has become a reliable “efficiency guardian” in power management, signal protection, and other critical electronic applications. Rather than relying on exaggerated specifications, the SD103CWS demonstrates that careful attention to the finer details of electronic design can unlock meaningful improvements in overall system performance.

1. Performance Breakdown: The “Three Lows and One High” Technology of SD103CWS

The core competitive strength of the SD103CWS lies in its precise balance across four key parameters: reverse voltage tolerance, rectified current capacity, forward voltage drop, and reverse leakage current. Through this coordinated optimization, the diode achieves an exceptional balance of efficiency, stability, and reliability, making it a true “all-round performer” for medium-power circuit applications.

1.1. 20V Reverse Voltage Tolerance: The “Safety Valve” for Low-Voltage Circuits

In power management systems, voltage fluctuations and transient spikes are common challenges. The SD103CWS from Slkor provides a 20V DC reverse voltage tolerance (Vr), effectively safeguarding low-voltage circuits such as 5V and 12V systems from unexpected reverse voltage spikes.

For example, in handheld device charging protection circuits, if a charging interface is accidentally connected in reverse, the SD103CWS can immediately block the reverse current flow, preventing potential damage to batteries or mainboard components caused by overvoltage. Its reverse current (Ir) is only 5μA at 10V, representing an 80% reduction compared with traditional diodes, significantly improving the static stability and reliability of the entire circuit.

1.2. 350mA Rectified Current: The “Efficiency Engine” for Medium Power

With an average rectified current (Io) of 350mA, the SD103CWS is well suited for medium-power applications such as power adapters and LED driver circuits.

For instance, in a smartphone charger design, using the SD103CWS for synchronous rectification reduced rectification losses by 40%, increasing charging efficiency from 85% to 90%, while simultaneously lowering temperature rise by 10°C. This improvement not only extends device lifespan and improves reliability but also helps products meet strict international energy-efficiency standards such as ErP requirements in the European market.

1.3. 0.37V @ 20mA Forward Voltage Drop: The “Energy-Saving Art” of Micro-Voltage Optimization

The forward voltage drop (Vf) represents the energy threshold required when a diode conducts current. At 20mA, the SD103CWS achieves an ultra-low 0.37V forward voltage drop, approximately 26% lower than typical Schottky diodes, which usually operate at 0.5V or higher.

Although the difference appears small at first glance, the cumulative impact across large-scale applications can be substantial:

• Consumer Electronics: A smartwatch using the SD103CWS extended its battery life from 3 days to 4 days.
• Industrial Sensors: In 4–20mA current loops, the SD103CWS’s lower voltage drop increased signal transmission distance by 20%, eliminating the need for additional amplification circuits.
• Green Energy Systems: In solar micro-inverters, the SD103CWS contributed to annual energy savings exceeding 500 kWh, equivalent to reducing approximately 260 kg of CO₂ emissions.

2. Design Tips: Unlocking the Full Potential of SD103CWS

Even with excellent device characteristics, improper circuit design can prevent the SD103CWS from reaching its full performance potential. Engineers can maximize reliability and efficiency by following three practical design principles.

2.1. Parameter Limits: Avoid “Overload” Hazards

The SD103CWS from Slkor is rated for a 20V reverse voltage tolerance. If the circuit environment may experience transient high-voltage events — such as sudden load dumps in automotive electronics — designers should add TVS diodes for clamping protection. In some real-world cases, neglecting this precaution resulted in reverse breakdown after about six months of operation in mass-produced products. Proper transient protection ensures long-term circuit reliability.

2.2. Thermal Management: Small Package, But Still Needs “Breathing Space”

Although compact in size, the SD103CWS still requires careful thermal design. Under continuous 350mA current, the junction temperature may rise to approximately 105°C. Engineers should assist heat dissipation through methods such as increasing the PCB copper area (recommended ≥30 mm²) and adding thermal vias beneath the device. For example, one LED driver manufacturer optimized their PCB layout and successfully reduced the SD103CWS operating temperature by 15°C, extending its estimated service life to more than 80,000 hours.

2.3. Electrostatic Protection: Reliability Lies in the Details

The SD103CWS features an ESD tolerance of 2000V HBM, providing a reasonable level of electrostatic robustness. However, strict anti-static procedures are still recommended during production, handling, and transportation. Standard practices include using anti-static packaging, wearing grounded wrist straps, and avoiding direct contact with component pins in dry environments. These small precautions can significantly reduce hidden reliability risks in high-volume manufacturing.

3. The Future is Here: How SD103CWS Defines the Next Generation of Electronic Design

As third-generation semiconductor technologies such as SiC (silicon carbide) and GaN (gallium nitride) continue to transform the power electronics landscape, the SD103CWS is also evolving. Slkor has revealed that its next-generation designs will incorporate a thinner barrier layer architecture, enabling switching frequencies exceeding 50MHz while further reducing the forward voltage drop to around 0.3V. These advancements will expand the SD103CWS’s potential in demanding applications such as 5G base stations, high-frequency power modules, and electric vehicle charging systems.

In today’s fiercely competitive electronics industry, the SD103CWS highlights a simple but powerful truth: real innovation does not always mean chasing extreme specifications. Instead, it comes from deeply understanding real-world engineering needs. While the device may not promise dramatic breakthroughs, its careful optimization — every 0.1V reduction in voltage drop and every microamp of leakage current improvement — helps engineers build systems that are more efficient, stable, and reliable.

Choosing the SD103CWS means selecting more than just a diode; it reflects a design philosophy centered on incremental innovation and practical engineering excellence. Within its compact 2.5 mm × 1.3 mm footprint, the component carries not only electrical current but also the spirit of technological progress — demonstrating how small, thoughtful improvements can drive meaningful change across modern electronic systems.
