【SLKOR semiconductor】BT136S-800E 4Q Triac: Reliable Solution for Power Electronics

BT136S-800E 4Q Triac.

Description

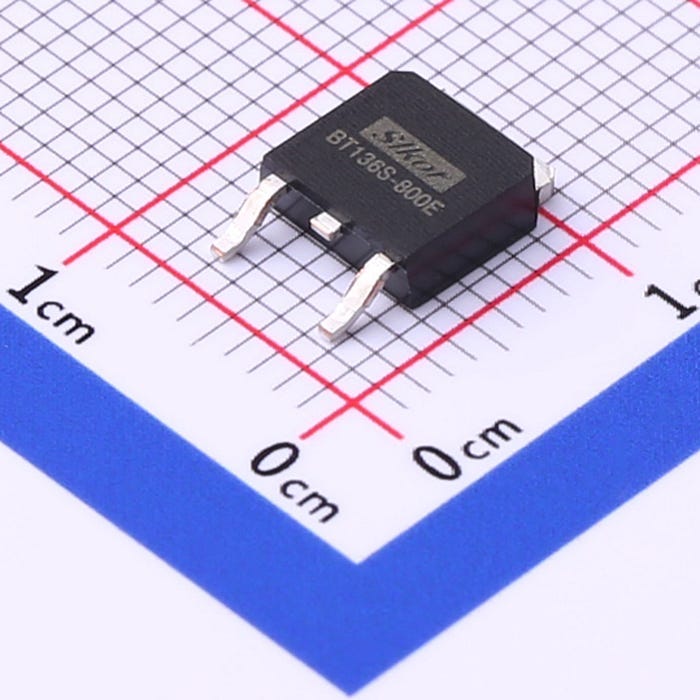

Planar passivated sensitive gate four quadrant triac in a TO252 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate “series E” triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.

Features

● Direct triggering from low power drivers and logic ICs

● High blocking voltage capability

● Low holding current for low current loads and lowest EMI at commutation

● Planar passivated for voltage ruggedness and reliability

● Sensitive gate

● Surface mountable package

● Triggering in all four quadrants

Applications

● General purpose motor control

● General purpose switching

Quick reference data

SymbolParameterConditionsMaxUnitVDRMRepetitive peak off-state voltages800VIT (RMS)RMS on-state current (full sine wave)Tc=110℃4AITSMSurge On-State Currenttp=16.7ms/10ms25 / 27A
