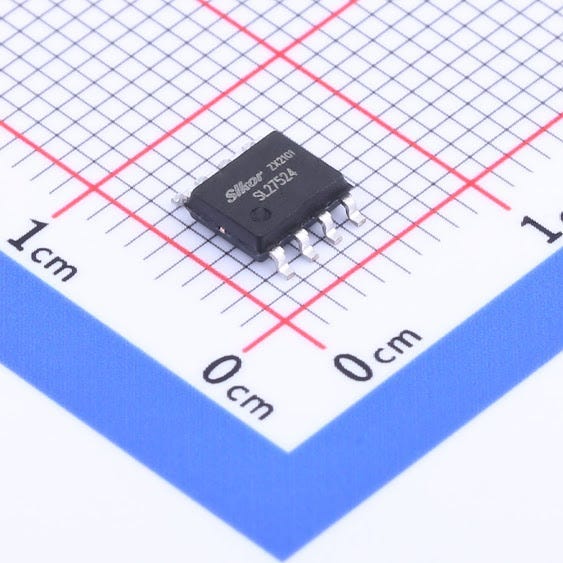

Searching for a Reliable UCC27524 Alternative? Discover Slkor's High-Performance SL27524 Gate Driver!

 Slkor introduces the SL27524, a high-performance alternative to Texas Instruments’ UCC27524 — a 24V single-channel low-side gate driver designed for fast switching, reliable operation, and seamless integration into your existing designs.

Specifications:

• Supply Voltage (VDD): 24V
• Peak Output Current (IO): 4A
• Quiescent Current (IDDQ): 180μA
• Operating Temperature Range (TA): -40°C to +125°C
• Package: SOP-8

Description
 The SL27523/4/5 series are dual, 4A high-speed low-side gate drivers, designed for efficient and reliable control of MOSFETs and IGBTs. With ultra-low propagation delay and minimal channel mismatch, these drivers enable MOSFET switching frequencies up to several hundred kHz — all in a compact SOP-8 package. They’re especially well-suited for synchronous rectification in server, telecom, and high-efficiency power supply applications, where precise dead-time control directly impacts transformer converter efficiency. The driver’s two channels can be connected in parallel to boost drive current capability when needed.

Key highlights:

• Wide VDD supply range: 4.5V to 20V, ideal for driving both MOSFET and GaN power devices.
• Integrated UVLO protection: Ensures safe operation by keeping outputs low during abnormal conditions.
• Broad input voltage tolerance: -5V to +24V independent input pin range effectively handles voltage overshoots from parasitic inductance, guaranteeing stable operation.
• TTL-level compatible input thresholds for easy system integration.

Perfect for demanding applications requiring fast, efficient, and reliable power device switching.

Applications

• AC/DC and DC/DC converters
• Server power supplies and rectifiers for telecom equipment
• EV/HEV inverters and DC/DC converters
• Photovoltaic (PV) boost converters and inverters
• Uninterruptible Power Supplies (UPS)
• Motor control systems
• Ideal gate drivers for emerging wide bandgap power devices (SiC, GaN)

Key Features

• Dual-channel, independent gate driving
• 4A peak source and sink current capability
• Wide VDD operating range up to 25V
• Independent enable inputs for flexible control
• Parallel channel operation for higher drive currents
• Optional inverting and non-inverting input configurations
• VDD undervoltage lockout (UVLO) protection
• Compatible with both TTL and CMOS logic levels
• Ultra-low propagation delay for high-speed switching
• Tight delay matching (typical 1ns) between channels for synchronized performance
• Output defaults to low when input is floating for enhanced safety
• Reliable operation across a wide temperature range: -40°C to +125°C

Target Applications

• Industrial power solutions
• Consumer electronics
• Automotive power systems
• Communication infrastructure
• Portable and mobile devices

1. DC-DC Regulators

For power management applications, Slkor provides direct replacements for several Texas Instruments DC-DC regulators:

• LM2575S-5.0 → Slkor Equivalent: LM2575S-5.0 (TO-263–5)
• LM2576S-5.0 → Slkor Equivalent: LM2576S-5.0 (TO-263–5)
• LM2596S-5.0 → Slkor Equivalent: LM2596S-5.0 (TO-263–5)

2. Gate Driver ICs

Gate driver ICs are crucial for controlling power transistors efficiently. Slkor alternatives include:

• UCC27511DBVR → SL27511 (SOT-23)
• UCC27525D → SL27525 (SOP-8)
• UCC27517DBVR → SL27517 (SOT-23)
• UCC27524 → SL27524 (SOP-8)
• UCC27523 → SL27523 (SOP-8)
• UCC5350 → SL5350SDR / SL5350MDR (SOP-8)
• UCC27531DBVR → SL27531 (SOT-23–6)
• UCC27624DR → SL27624MS (SOP-8)
• UCC27714 → SL27714 (SOP-14)

3. General-Purpose Operational Amplifiers (Op-Amps)

Slkor provides replacements for widely used TI op-amps:

• RC4558DRG4 → SL4558S (SOP-8)
• LM124DR → LM124D (SOP-14)
• LM224DR → LM224D (SOP-14)
• LM324DR → LM324D (SOP-14)
• LMV358QD → LMV358 (SOP-8)
• LM2904P → LM2904 (DIP-8)
• TLV9062 → SL9062C (SOP-8) / SL9062D (SOT-23–8L)

For precision applications, Slkor offers:

• OPA333 → SLA333 (MSOP-8)

4. Linear Regulators (LDOs)

Slkor provides equivalent alternatives to TI’s low-dropout (LDO) regulators:

• LP5907MFX-3.3 → SL9013M33SE (SOT-23–5)
• LP2992IM5–3.3 → SL54M33SE (SOT-23–5)
• TLE4275-Q1/TPS7B87-Q1 → SL4275 (TO-252–5)
• TLE4275-Q1 → SL4275-G (TO-263–5)
• TLE4264/LM2936Q → SL4264–2 (SOT-223)
• TL720M05-Q1 → SL42744D (TO-252–3)
• TPS7B86-Q1 → SL42764 (TO-252–5)

5. Real-Time Clock (RTC) & Timers

For applications requiring precision timing:

• LM555CMX → SL555S (SOP-8)

6. Logic Gates

Logic ICs are essential for digital circuit design. Slkor equivalents include:

• SN74HC164DR → 74HC164D (SOP-14)
• CD4001BM → CD4001BM (SOP-14)
• SN74LVC1G11 → 74LVC1G11S6 (SOT-23–6)
• SN74LVC1G10 → 74LVC1G10S6 (SOT-23–6)
• SN74LVC1G32 → 74LVC1G32S5 (SOT-23–5)
• SN74LVC1G27 → 74LVC1G27S6 (SOT-23–6)
• SN74LVC1G34 → 74LVC1G34S5 (SOT-23–5)
• SN74LVC2G34 → 74LVC2G34S6 (SOT-23–6)

7. CAN and RS-485 Transceivers

For communication and networking applications, Slkor offers:

• SN65HVD230DR → SL65HVD230DR (SOP-8)
• SN65HVD232DR → SL65HVD232DR (SOP-8)
• SN65HVD233DR → SL65HVD233DR (SOP-8)
• SN65HVD234DR → SL65HVD234DR (SOP-8)
• SN65HVD08DR → SL65HVD08DR (SOP-8)

8. Analog Switches

For signal switching applications, Slkor provides:

• TS5A3157 → SL3157XC6 (SC-70–6) / SL3157XT6 (SOT-23–6)

9. Level Converters

For voltage translation applications:

• TXS0101 → SL0101S6 (SOT-23–6)
• TXS0102 → SL0102S8 (SOT-23–8)

For more information please reach out : sales03@slkormicro.com
