Why the MM1Z20B Zener Diode Is a Game-Changer for Modern Electronics - Full Performance & Application Breakdown

 Introduction

 In modern electronics, Zener diodes serve as essential protectors, safeguarding circuits by delivering precise voltage regulation and ensuring the reliable performance of devices. Among them, the MM1Z20B stands out for its impressive specifications and versatile application potential. In this feature, we’ll dive deep into its performance highlights and explore why it’s a valuable choice for engineers and system designers.

MM1Z20B Performance Highlights

1. Superior Voltage Regulation

• Nominal Voltage: Engineered to consistently maintain a stable 20V output, the MM1Z20B ensures critical components operate safely and efficiently, even under fluctuating input conditions.
• Voltage Regulation Range: With an operating range from 19.52V to 20.39V, it delivers dependable voltage stabilization, offering both precision and resilience in demanding environments.

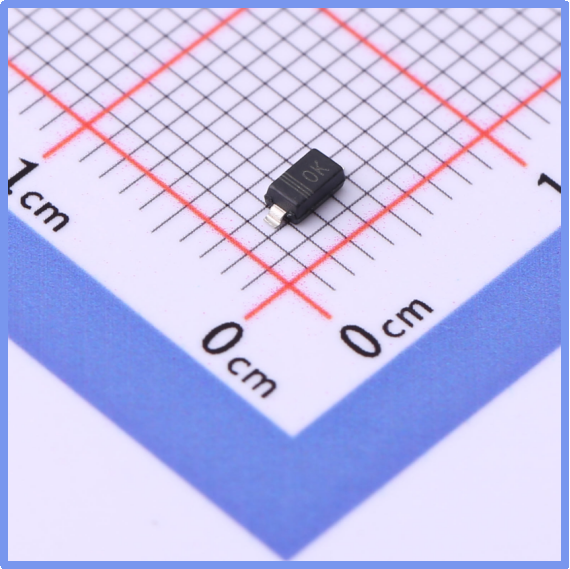

Slkor Voltage Regulator Diode MMBZ5243B product photo

2. Impressive Power Handling Capability

• Power Rating: Designed to handle up to 500mW, the MM1Z20B performs reliably even under demanding, high-load conditions. This robust power capacity helps maintain device stability and safeguards circuits from thermal stress, extending the operational lifespan of your electronic systems.

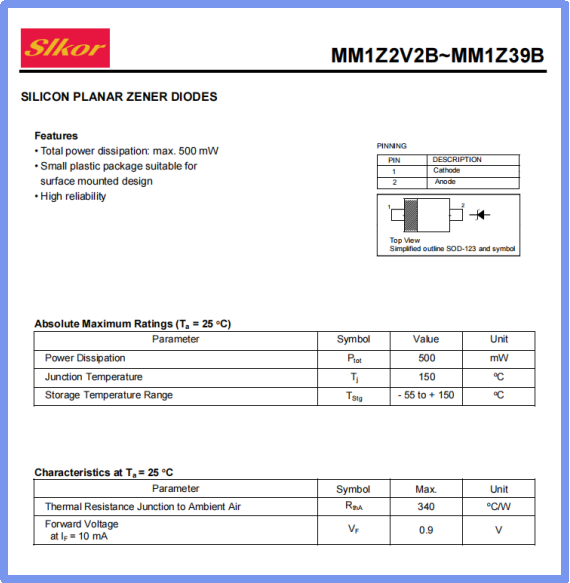

Slkor Voltage Regulator Diode MMBZ5243B specification

3. Ultra-Low Reverse Current Performance

• Reverse Current (Ir): Featuring an exceptionally low reverse current of just 0.1µA, the MM1Z20B minimizes power loss when inactive. This efficiency not only lowers overall energy consumption but also helps extend battery life in portable and energy-sensitive applications — making it an ideal choice for modern, high-efficiency electronic designs.

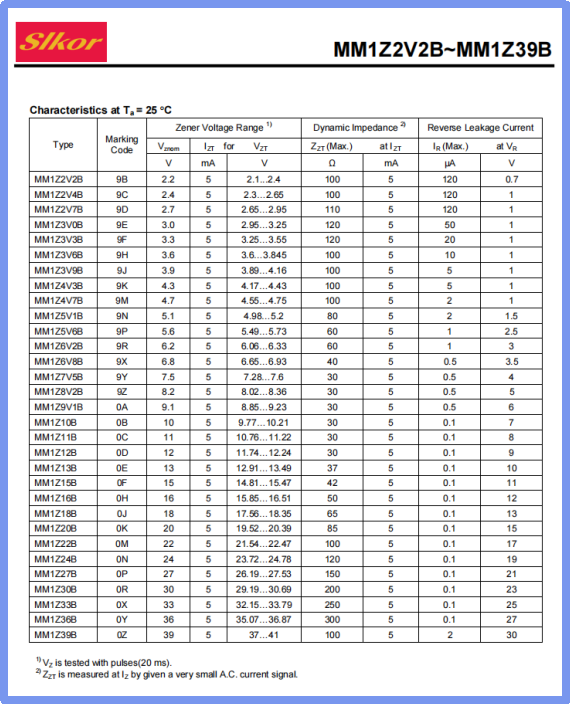

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

Key Advantages of the MM1Z20B Zener Diode

• Precision Voltage Regulation: The MM1Z20B ensures consistent voltage stability at its rated set point, enhancing the reliability and durability of sensitive electronic circuits.
• Robust Power Handling: With a power capacity of up to 500mW, it reliably maintains performance under demanding load conditions, safeguarding devices and extending operational lifespan.
• Ultra-Low Reverse Current: Its minimal reverse leakage current reduces idle power consumption, contributing to higher overall energy efficiency and extended battery life in portable or power-sensitive applications.

Real-World Application Highlights of the MM1Z20B Zener Diode

Application Case 1: Automotive Power Management

• Challenge: Modern vehicles integrate complex electronic systems — from engine control to infotainment — that require consistent, stable voltage to operate safely and reliably.
• Solution: The MM1Z20B is implemented in automotive power circuits to regulate voltage supplied by 12V or 24V battery systems. It quickly stabilizes voltage around 20V in response to fluctuations caused by engine start-up, acceleration, or load changes.
• Outcome: Automotive manufacturers can maintain the reliable performance of electronic control systems, enhancing driving safety, passenger comfort, and vehicle system longevity.

Application Case 2: Overvoltage Protection in Industrial Automation

• Challenge: In industrial environments, voltage spikes from unstable power grids, lightning, or equipment failures threaten sensitive devices like PLCs, sensors, and actuators.
• Solution: The MM1Z20B acts as a dependable overvoltage protection component, clamping input voltages to a safe, controlled level the moment they exceed the threshold.
• Outcome: This protection minimizes equipment failure rates, boosts operational reliability, and enhances overall productivity in manufacturing and automation systems.

Application Case 3: Stable Power for Communication Equipment

• Challenge: Communication infrastructure — including base stations, routers, and switches — requires stable voltages for accurate signal processing. Any fluctuation risks signal distortion and degraded transmission quality.
• Solution: The MM1Z20B is integrated into power regulation circuits within these devices, ensuring steady voltage levels and leveraging its ultra-low reverse current to reduce electrical noise.
• Outcome: Communication equipment manufacturers benefit from enhanced signal transmission accuracy, improved system reliability, and superior end-user experience.
