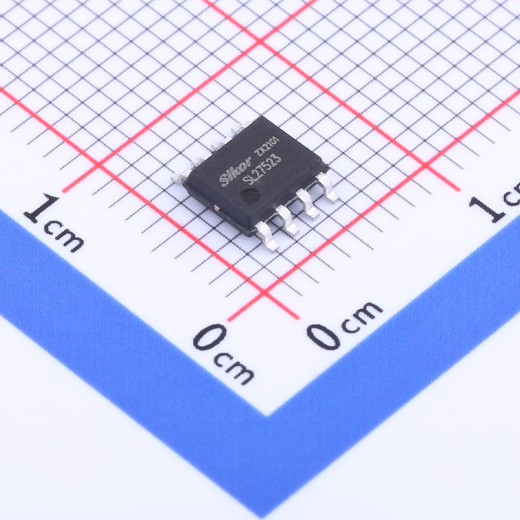

Elevate Your Power Designs with SLKOR SL27523 — A Trusted Replacement for TI’s UCC27523

Key Specifications of SL27523 Gate Driver

  • Operating Voltage (VDD): Up to 24V
  • Peak Output Current (IO): 4A
  • Low Quiescent Current (IDDq): Only 180μA
  • Wide Temperature Range (TA): Up to 125°C
  • Compact Package: SOP-8 for space-efficient designs

Description

● The SL27523/4/5 series are dual-channel, 4A high-speed low-side gate drivers engineered to efficiently and safely drive MOSFETs and IGBTs. With exceptionally low propagation delay and channel mismatch in a compact SOP-8 package, these drivers enable MOSFETs to switch at frequencies of several hundred kHz. Ideal for synchronous rectification in servers and communication power supplies — where minimizing MOSFET dead time is crucial for converter efficiency — the driver’s dual channels can be paralleled to boost output drive current. In addition, the input thresholds conform to TTL levels and support voltages from -5V to 20V.

● With a broad VDD range of 4.5V to 20V, this device effectively drives MOSFETs or GaN power devices. Its integrated UVLO protection maintains a low output level during abnormal conditions. Additionally, independent input pins tolerate voltages from -5V to 24V, ensuring stable operation despite overshoots from stray inductance. Plus, the input threshold is fully compatible with TTL-level signals.

Applications
 The SL27523/4/5 series gate drivers are built for high-efficiency, high-reliability systems across multiple industries, offering robust performance for both traditional and next-gen applications:

  • AC/DC & DC/DC Converters — Power-efficient designs for industrial and consumer use
  • Telecom Power Systems & Servers — Reliable rectification and high-speed switching for communication infrastructure
  • EV/HEV Powertrains — Ideal for inverters and converters in electric and hybrid vehicles
  • Photovoltaic (PV) Systems — Supports voltage step-up and inverter functions for solar energy
  • Uninterruptible Power Supplies (UPS) — Ensures clean, consistent backup power
  • Motor Drives — Smooth control for industrial and consumer motor systems
  • Wide Bandgap Power Devices — Optimized for SiC/GaN drivers in cutting-edge designs

Key Features

  • Dual Independent Gate Channels — Flexible configurations for isolated or paralleled driving
  • 4A Peak Sink & Source Current — Delivers strong, reliable drive capability
  • Wide VDD Range (up to 24V) — Excellent voltage flexibility for diverse designs
  • Independent Enable Pins — Simplified control logic for each channel
  • Parallel Operation Support — Ideal for high-current driving needs
  • Selectable Inverting/Non-Inverting Inputs — Greater control in design customization
  • Under-Voltage Lockout (UVLO) — Ensures safe startup and operation
  • TTL & CMOS Input Compatibility — Seamless integration with mainstream logic levels
  • Ultra-Low Propagation Delay — Faster switching with precise timing
  • <1ns Channel-to-Channel Delay Mismatch — Exceptional timing symmetry
  • Failsafe Output Behavior — Defaults to low-level output if input floats
  • Wide Operating Temperature (-40°C to +125°C) — Ready for harsh environments

From industrial automation to EV systems and renewable energy, the SL27523/4/5 series delivers next-level performance and design freedom for power engineers around the globe.

Op-amp

  1. SL4558S — SOP-8 (Replacement PN: RC4558DRG4)
  2. LM124D — SOP-14 (Replacement PN: LM124DR)
  3. LM224D — SOP-14 (Replacement PN: LM1224DR)
  4. LM324D — SOP-14 (Replacement PN: LM324DR)
  5. LMV358 — SOP-8 (Replacement PN: LMV358QD)
  6. LMV321 — SOT-23–5 (Replacement PN: LMV321ILT)
  7. LM2904 — DIP-8 (Replacement PN: LM2904P)
  8. SL9062C — SOP-8 (Replacement PN: TLV9062)
  9. SL9062D — SOT-23–8L (Replacement PN: TLV9062)
  10. SL722XS8 — SOP-8 (Replacement PN: SGM722/LTC722/RS722)
  11. SL2122C — SOP-8 (Replacement PN: NJM2122)

Quartz Crystal

  1. SL322532M9P — SMD3225–4 (Replacement PN: X1E0000210167)
  2. SL322532M10P — SMD3225–4P (Replacement PN: X1E000021016300)
  3. SL322512M20P — SMD3225–4P (Replacement PN: CJ13–120002010A20)
  4. SL322516M9P — SMD3225–4P (Replacement PN: X1E000021037500)
  5. SL322516M12P — SMD3225–4P (Replacement PN: X1E000021011900)
  6. SL322524M12P — SMD3225–4P (Replacement PN: X1E0000210129)
  7. SL322525M20P — SMD3225–4P (Replacement PN: X1E000021035200)
  8. SL322525M12P — SMD3225–4P (Replacement PN: X1E000021013900)

Darlington

  1. TIP122 — TO-220 (Replacement PN: TIP122)
  2. TIP127 — TO-220 (Replacement PN: TIP127)
  3. ULN2001D — SOP-16 (Replacement PN: ULN2001D1013TR)

Hall Sensor

  1. SLSS41F — TO-92S (Replacement PN: SS41F)
  2. SLSS360 — SOT-23 (Replacement PN: SS360)
  3. SLSS451A — TO-92 (Replacement PN: SS451A)
  4. SLSS39E — TO-92S (Replacement PN: SS39E)
  5. SL-302B — SSIT-4 (Replacement PN: SS41F)
  6. SL-106C — SSOT-4 (Replacement PN: HG-106C)
  7. SL-322B — SSIP-4 (Replacement PN: HG-322B)
  8. SL-S-TRS-5.5D1 — Infrared Thermopile Sensor, SMD (Replacement PN: MLX90632)
  9. SL-W-TRS-5.5D1 — Digital Infrared Thermopile Sensor, TO-46 (Replacement PN: MLX90614BAA/BBA)
  10. SL-FW-TRS-5.5D1 — Long Distance Digital Infrared Thermopile Sensor, TO-39 (Replacement PN: MLX90614BAF/BBF)

Optocoupler

  1. SL-1007 — SMD-4 (Replacement PN: TCLT1007)
  2. SL-1008 — SMD-4 (Replacement PN: TCLT1008)
  3. SL3H7C — SOP-4 (Replacement PN: IS3H7C)
  4. SL-1009 — SMD-4 (Replacement PN: TCLT1009)
  5. 6N135S — SMD-8 (Replacement PN: 6N135SM)
  6. 6N136S — SMD-8 (Replacement PN: 6N136SDM)
  7. 6N137S — SMD-8 (Replacement PN: 6N137SDM)
  8. 6N136 — DIP-8 (Replacement PN: 6N136M)

Linear Regulator

  1. SL4949 — SOP-8 (Replacement PN: L4949E/TLF4949/NCV4949)
  2. SL4275 — TO-252 (Replacement PN: TLE4275/MP2014/BD42754/TLE4275-Q1/TPS7B87-Q1)
  3. SL4284 — TO-252 (Replacement PN: TLE4284)
  4. SL9013M33SE — SOT-23–5 (Replacement PN: LP5907MFX-3.3)
  5. SL54M33SE — SOT-23–5 (Replacement PN: LP2992IM5–3.3)
  6. AMS1117–1.8 — SOT-223/SOT-89 (Replacement PN: AMS1117–1.8)
  7. AMS1117–1.2 — SOT-223/SOT-89 (Replacement PN: AMS1117–1.2)
  8. AMS1117–1.5 — SOT-223/SOT-89 (Replacement PN: AMS1117–1.5)
  9. LM317 — TO-220 (Replacement PN: LM317T-DGZ)
  10. SL4275-G — TO-263–5 (Replacement PN: TLE42754G/TLE4275-Q1/NCV4275C/NCV4290/NCV8675/NJW4185/BD42754)
  11. SL4264–2 — SOT-223 (Replacement PN: TLE4264/TPS7B69-Q1/LM2936Q/NCV8664/NCV4266–2C)
  12. SL42744D — TO-252–3 (Replacement PN: TLE42744/NJW4187/NJW4185/NCV7800/NCV4274/TL720M05-Q1)
  13. SL42764 — TO-252–5 (Replacement PN: TLE42764/TPS7B86-Q1/NCV4276C/NJW4186)
