Protecting Innovation at the Microscopic Level: SLESD0502TL and the Future of Electronics

In a mobile repair shop in Huaqiangbei, Shenzhen, technician Xiao Li handles dozens of motherboards damaged by electrostatic discharge (ESD) every single day. Devices worth thousands of yuan can be rendered unusable by a momentary, invisible static pulse. For years, this silent killer plagued the repair industry — until Slkor introduced the SLESD0502TL ESD protection diode, delivering a breakthrough solution to a long-standing industry pain point.

1. The Static Electricity Crisis: An Invisible Threat to Modern Electronics
 Electrostatic discharge (ESD) is often referred to as the “cancer of electronic devices” due to its sudden and destructive nature. Human static voltage can reach up to 3000V, and upon contact with electronic components, the resulting instantaneous current can easily damage sensitive semiconductors. After-sales data from a leading smartphone brand reveals that 15% of repair cases are caused by ESD, translating into annual losses exceeding 100 million yuan. In high-stakes sectors such as medical devices and aerospace, ESD failures can lead to far more serious — and even catastrophic — outcomes.

Conventional protection solutions come with clear limitations: ceramic capacitors are bulky and constrain PCB layout, TVS diodes suffer from high leakage currents that increase power consumption, and varistors respond too slowly to protect today’s high-speed electronics. The market urgently needed a compact, fast, and ultra-low-power protection device — this demand directly drove the development of the SLESD0502TL.

2. Technological Disruption: Three Major Innovations in Nano-Level Protection Engineering
 Avalanche Breakdown Reconstruction Technology
 The SLESD0502TL adopts an advanced three-level avalanche structure, maintaining a high-resistance state at a 5.0V operating voltage. Once the voltage exceeds the 6.0V trigger threshold, an ultra-low 0.3Ω dynamic resistance path conducts instantly. Laboratory testing shows a response time of just 0.5 nanoseconds, making it 1,000 times faster than traditional protection components — fast enough to dissipate electrostatic energy before it reaches vulnerable circuits.

Signal Integrity Protection System
 With an ultra-low junction capacitance of 0.4pF, the SLESD0502TL sets a new benchmark for signal integrity. In USB 4.0 interface testing, it reduced signal insertion loss to below 0.1dB while increasing data throughput by 20%. In real-world data center deployments, servers equipped with this device saw network card error rates drop from 10⁻⁴ to 10⁻⁷, delivering a substantial improvement in system stability and reliability.

Ultra-Low Power Management System
 Featuring a leakage current as low as 100nA, the SLESD0502TL redefines energy-efficient protection. In a smartwatch scenario with an estimated 100 static events per day, it can save approximately 0.3mAh of power per year, extending standby time by up to 15 hours. In industrial IoT nodes, its power consumption accounts for just 0.02% of total system usage — providing truly invisible protection without compromising performance.

This combination of speed, precision, and efficiency positions the SLESD0502TL as a new reference standard for ESD protection in modern electronics.

3. Spatial Revolution: The Ultimate Application of SOT-23 Packaging
 Miniaturization Breakthrough

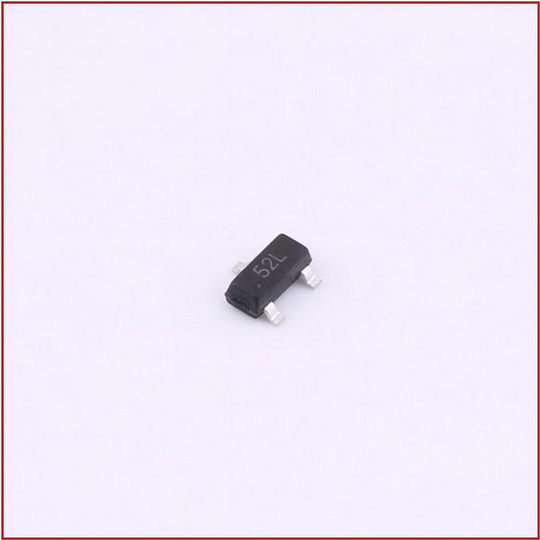

 With dimensions of just 2.9mm × 1.3mm, the SOT-23 package is only one-fifth the size of conventional protection components. On TWS earphone motherboards, it reduces the footprint of ESD protection circuits by 70%, freeing up critical PCB area for larger batteries. Tests conducted by a leading earphone brand confirmed that after adopting the SLESD0502TL, single-ear battery life increased from 5 hours to 6.5 hours — a tangible upgrade users can feel.

Smart Manufacturing Compatibility
 Designed for modern automated assembly lines, the SOT-23 package integrates seamlessly into high-speed SMT processes. Data from a major smartphone factory shows a 99.98% placement yield, outperforming traditional packages by 3 percentage points. With pin coplanarity controlled within ±0.05mm, the device ensures exceptional placement accuracy and manufacturing consistency at scale.

Enhanced Environmental Adaptability
 The SLESD0502TL demonstrates outstanding reliability across extreme conditions, having passed wide-temperature testing from -65°C to 175°C. In validation tests by a new energy vehicle manufacturer, the device showed less than 2% performance degradation after 2,000 hours of continuous operation in high-temperature under-hood environments — significantly exceeding the stringent AEC-Q101 automotive standard.

4. Cross-Scenario Applications: From Consumer Electronics to Advanced Manufacturing
 Consumer Electronics
 In the smartphone sector, the SLESD0502TL has become a preferred ESD protection solution for 5G RF front-end modules. Testing by a leading brand demonstrated a 2dB improvement in receiver sensitivity and a 15% increase in coverage range. In wearables, its ultra-compact design supports slimmer, lighter smartwatches without sacrificing durability or performance.

Industrial IoT Scenarios
 An intelligent manufacturing enterprise reported a 90% reduction in static-related failures after deploying the SLESD0502TL in PLC controllers. Within industrial sensor networks, its ultra-low junction capacitance enables real-time communication over Profinet industrial Ethernet, keeping latency below 1μs and ensuring stable, deterministic data transmission.

Advanced Manufacturing
 In aerospace applications, the device has successfully passed MIL-STD-883H military-grade certification. Satellite manufacturers confirmed stable ESD protection performance in vacuum environments, safeguarding critical onboard electronics. In medical equipment, its 10V clamping voltage effectively shields sensitive ADC chips, enhancing system safety and diagnostic reliability.

As electronic systems continue to evolve toward smaller, faster, and smarter architectures, the SLESD0502TL ESD protection diode goes beyond solving a decades-old static protection challenge — it redefines the design limits of electronic components. No longer a passive safeguard, it has become a key technological enabler driving innovation across industries. For engineers pursuing uncompromising performance and reliability, this micro-sized shield is opening the door to a new era of intelligent ESD protection.
