SD03 ESD Protection Diode: Compact Design, Powerful Defense for Modern Electronics

In today’s rapidly digitalizing world, electronic devices have evolved from occasional “luxuries” into everyday necessities. The smartphones in our hands, smart navigation systems in our vehicles, and automated production lines in factories function like the “nerve endings” of modern society, quietly sustaining daily life and industrial operations. Yet behind these advanced technologies lurks an invisible threat — a true silent killer: electrostatic discharge (ESD). A simple touch or a dry environment can trigger electrostatic voltages of several thousand volts, instantly breaking down sensitive components and leaving devices unusable.
 The SD03 ESD protection diode, launched by Slkor, is engineered to confront this risk head-on — using “tiny power” to build a robust safety barrier for the electronic world.

1. Shattering Expectations: The Hardcore Strength of a “Tiny” Component

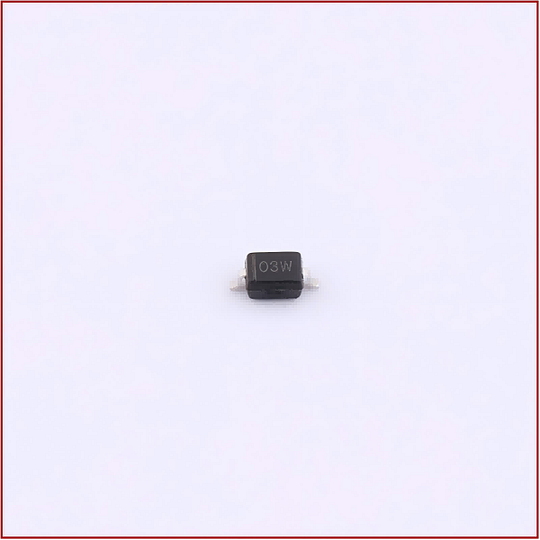

 At first glance, the SD03 hardly looks like a hero. No larger than a grain of rice, this compact component carries a mission far greater than its size suggests. Housed in an SOD-323 package, the SD03 embodies Slkor’s philosophy of small form, big responsibility. Its core design principle is instant response.

For modern electronic systems built around 3.3V low-voltage circuits, the SD03 sets its reverse working voltage (VRWM) precisely at 3.3V, remaining effectively “invisible” during normal operation and ensuring zero interference with circuit performance. The moment electrostatic voltage rises beyond 4V (minimum breakdown voltage, VBR), however, the diode springs into action — conducting within nanoseconds to safely divert harmful energy to ground. At the same time, it clamps residual voltage at just 14V (clamping voltage, VC), shielding downstream circuits from damage.

This combination of precision, speed, and reliability allows the SD03 to decisively neutralize electrostatic threats, making it a trusted “ESD defender” in low-voltage electronic designs.

2. Performance Beast: Steady as a Rock in Extreme Environments
 Electronic devices operate across dramatically different environments — from –40 °C polar research stations to the 85 °C heat inside automotive engine compartments. The SD03 is engineered to perform reliably under both extremes of “ice and fire.” Test results show that across a wide temperature range of –55 °C to 150 °C, its key electrical parameters fluctuate by less than 5%, while leakage current (IR) remains stably controlled within 40 µA.

This rock-solid stability is rooted in Slkor’s advanced materials engineering. Through optimized semiconductor doping processes, the SD03’s PN junction maintains a well-defined depletion layer even at elevated temperatures, effectively suppressing thermal runaway. Its enhanced passivation layer further protects the device in high-humidity environments, resisting moisture intrusion and minimizing leakage risks.

Equally noteworthy, despite a junction capacitance (CJ) of 450 pF, the SD03 delivers negligible signal attenuation in low-frequency applications (below 1 MHz). Thanks to proprietary frequency-compensation techniques, it preserves signal integrity — making it an ideal choice for industrial control systems, automotive electronics, and other mission-critical applications where reliability is non-negotiable.

3. A Versatile Player: From Consumer Electronics to Aerospace
 The SD03 has found wide adoption across global markets and multiple industries. In consumer electronics, it safeguards USB Type-C interfaces in smartphones and TWS earphones, eliminating concerns about ESD damage during frequent plug-and-unplug cycles. In automotive electronics, it acts as a silent guardian for in-vehicle infotainment systems, ensuring stable operation even when touchscreens are repeatedly handled in dry winter conditions.

Within industrial automation, the SD03 provides round-the-clock protection for PLC controllers and sensor networks, preventing costly downtime caused by electrostatic events. In the aerospace sector, radiation-resistant variants have passed NASA-level standards, serving as a reliable “space shield” for satellite communication systems.

This impressive cross-industry adaptability stems from the SD03’s smart balance between standardization and customization. The standard model addresses over 90% of common application needs, while tailored versions — through package options and parameter optimization — can be rapidly adapted to specialized environments, making the SD03 a truly indispensable tool for engineers worldwide.

Conclusion: Protecting Innovation from the “Tiny” Start
 Throughout the history of science and technology, many transformative breakthroughs have emerged from meticulous attention to the smallest details. The SD03 ESD protection diode is a perfect embodiment of this principle. Modest in appearance yet formidable in function, it protects electronic systems worth billions with nanosecond-level precision.

While it may not add new features on its own, the SD03 ensures that innovation can flourish safely and reliably. From laboratories to production lines, from Earth to outer space, it proves that the real strength of technology often lies in what goes unseen. Choosing the SD03 means choosing invisible insurance for innovation — empowering the next generation of electronics to evolve with confidence and security.
