Slkor SL27517A Intelligent Driving Solution for High-Efficiency Applications

 Shenzhen Slkor Micro Semiconductor Ltd. (www.slkoric.com) brings together a technical backbone team with strong academic roots, including experts from Tsinghua University. Driven by advanced materials, innovative processes, and next-generation products, the company has mastered internationally advanced third-generation semiconductor silicon carbide (SiC) power device technology. Slkor is a high-tech enterprise integrating design, R&D, manufacturing, and global sales, delivering reliable electronic components and professional technical support to customers worldwide.

1.1 Name: Slkor SL27517A Driver MOSFET Solution
 1.2 Application: Power tools, motor control, AC-DC converters, industrial control systems, and other high-performance electronic applications.

2. Performance Parameter Benchmarking, Strong Compatibility

2.1 Symmetrical Drive Capability
 The Slkor SL27517A, a 4A single-channel gate driver, offers compelling advantages when used as an alternative to the UCC27517DBVR from Texas Instruments. These advantages are reflected in performance compatibility, cost efficiency, design flexibility, and stable supply availability.

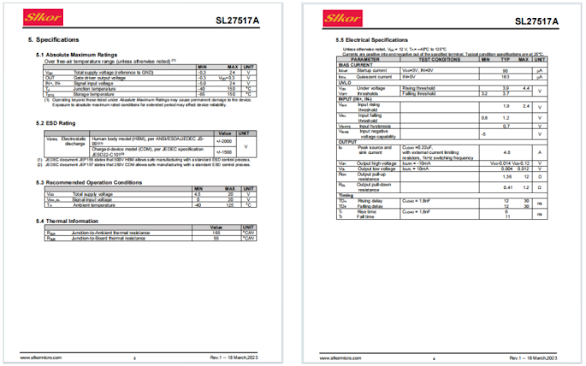

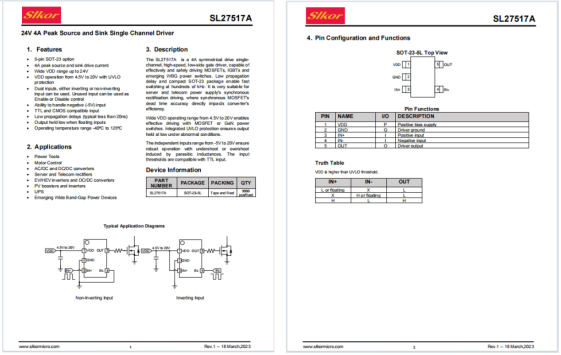

The Slkor SL27517A provides 4A sink/source peak current (symmetrical drive) at VDD = 12V, fully matching the 4A source/sink capability of the UCC27517. This allows it to efficiently drive power MOSFETs and IGBTs, making it well suited for switching power supplies, DC-DC converters, and other high-efficiency power applications.

Additionally, the SL27517A supports a wide operating voltage range of 4.5V–20V, slightly exceeding the 4.5V–18V range of the UCC27517. This expanded range offers stronger adaptability, particularly in low-voltage or battery-powered scenarios, such as portable devices.

2.2 Low Delay and High-Speed Response
 The Slkor SL27517A features short propagation delay (typical 12ns) and fast rise/fall times (6ns/11ns), significantly reducing switching losses. These characteristics make it ideal for high-frequency applications, including digital power supplies and GaN device driving.

3. Design Flexibility and Enhanced Safety

3.1 Dual Input Configuration and Power Consumption
 The Slkor SL27517A supports both inverting (IN−) and non-inverting (IN+) input modes. Its dual-pin configuration allows designers to easily adapt to different logic control requirements, simplifying circuit design and improving system flexibility.

3.2 Floating Input Protection
 When the input pin is left floating, the SL27517A output automatically latches low, preventing accidental triggering of power transistors and improving overall system reliability and operational safety.

3.3 Low Quiescent Power Consumption
 With very low quiescent current, the SL27517A is especially suitable for battery-powered or low-power applications, including solar systems, UPS equipment, and energy-efficient electronics.

4. Typical Application of Slkor SL27517A in High-Power Driving Scenarios

4.1 Application Principle:

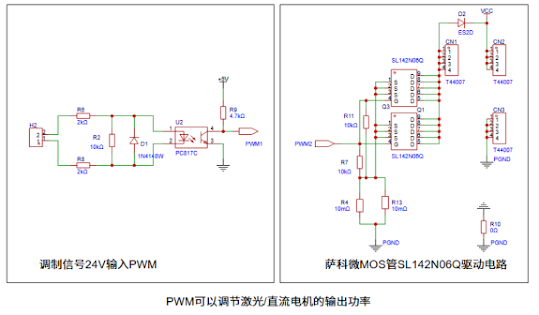

 The input modulation signal generates a PWM waveform to drive the PC817 optocoupler (U2) from Slkor. When the 24V pulse waveform is high, the optocoupler current is approximately 6mA. A 5V control signal can also be used by adjusting the current-limiting resistors R6 and R8. The optocoupler U2 mainly provides signal isolation, improving system stability and safety. Its operating power is supplied by the DC-DC power management IC LM2596S-5.0 from Slkor, which delivers a stable 5V output. The external modulation signal can be generated by a PLC controller.

Component D1 is a Slkor switching diode used for freewheeling protection, preventing damage to optocoupler U2 if the modulation signal is accidentally reverse-connected.

The key control device U1 is the SL27517A from Slkor — a single-channel 4A high-speed low-side gate driver capable of efficiently and reliably driving MOSFETs and IGBTs. With features such as low propagation delay, compact SOT-23 packaging, and extremely low quiescent current, the driver enables MOSFET switching frequencies reaching hundreds of kHz. These advantages make it highly suitable for synchronous rectification in servers and communication power supplies, as well as a wide range of industrial control applications.

4.2 Suggestions from Slkor Applications for Engineers:
 In this circuit, the SL27517A from Slkor operates with a 12V supply. When pin 5 outputs a high level, it drives the MOS transistor SL142N06Q to switch on and power the load. The SL142N06Q MOSFET features a typical drain-source current of 20A at a 10V gate drive and an ultra-low on-resistance of 2.6mΩ, making it highly suitable for high-speed switching control and synchronous rectification applications.

The value of resistor R3 should be selected according to the actual PCB layout and routing conditions; in this reference design, 100Ω is used. For optimal performance, R3 should be placed as close as possible to the MOSFET gate, and the routing path should remain short and direct to minimize parasitic inductance.

Component D3 is a switching diode mainly used to accelerate the turn-off process of the MOSFET, helping improve switching efficiency and reduce power losses. It can be added or adjusted based on the specific application requirements and circuit conditions.

5. The DEMO board corresponding to the Slkor SL27517A gate driver is shown below:

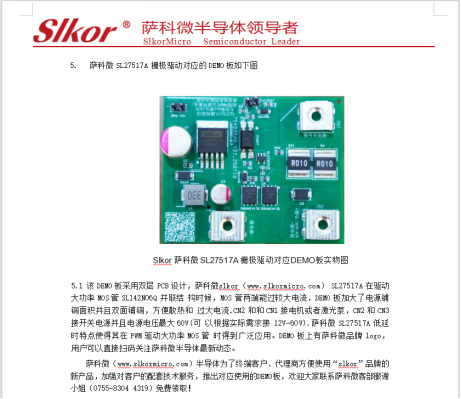

Physical image of the Slkor SL27517A gate driver corresponding DEMO board

5.1 This DEMO board adopts a double-layer PCB design. When the Slkor SL27517A drives a parallel structure of high-power MOSFETs such as the SL142N06Q, which supports high current operation, the board design increases the power copper pour area and uses double-sided copper layers to enhance heat dissipation and current-carrying capability.

Connectors CN1 and CN2 are used to interface with the motor or laser pump, while CN2 and CN3 connect to the switching power supply, supporting a maximum voltage of 60V (typically adjustable from 12V–60V depending on application requirements).

Thanks to the low propagation delay of the SL27517A, the solution is widely applied in PWM control of high-power MOSFETs, enabling efficient and reliable switching performance in demanding power applications.

The DEMO board also features the Slkor brand logo, and users can scan the code on the board to follow the latest technology updates and product developments from Slkor Semiconductor.

6. Slkor SL27517A Gate Driver DEMO Board BOM Information is as follows:

Slkor Micro Semiconductor (www.slkoric.com) provides corresponding DEMO boards for end customers and distributors to facilitate the use of new “Slkor” brand products and to enhance supporting technical services for customers. Everyone is welcome to contact Slkor Sales team Ms. Ethel (Sales03@slkormicro.com)
