Protect High-Speed Interfaces in Minimal Space with Slkor's SLESD0402-V05

 As smartphone transmission speeds surpass 10Gbps and PCB density in wearable devices rises by nearly 50%, the need for reliable electrostatic protection in high-frequency, low-voltage circuits has never been greater. Even a minor electrostatic discharge can distort signals at high-speed data interfaces, while oversized protection components can compromise the layout of compact designs. Slkor’s SLESD0402-V05 ESD protection diode addresses both challenges with its ultra-compact 0402 package and ultra-low 1.5pF junction capacitance, making it an ideal solution for space-constrained, high-frequency applications where signal integrity and board efficiency are critical.

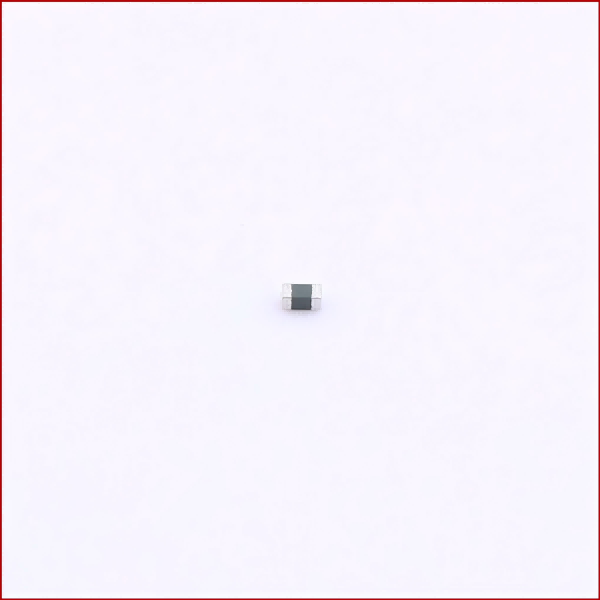

As a protection device tailored for high-frequency, low-voltage applications, the core strength of the SLESD0402-V05 lies in being “small yet precise.” It adopts an ultra-compact 0402 package (typical dimensions 1.00mm × 0.50mm), roughly one ten-thousandth the size of a fingernail, allowing it to fit effortlessly into high-density layouts such as smartphone motherboards and smartwatch sensors, freeing valuable PCB space for designers. Electrically, its 5.0V reverse working voltage aligns perfectly with mainstream low-voltage circuits, ensuring zero interference during normal operation, while the 140V breakdown voltage acts as a solid defense line — rapidly conducting and safely diverting excessive current during electrostatic discharge events.

More importantly, it achieves an excellent balance between protection capability and signal compatibility. The ultra-low leakage current of just 500nA minimizes additional power consumption, helping extend battery life, while the 1.5pF junction capacitance preserves high-frequency signal integrity. This makes it well suited for high-speed interfaces such as USB 2.0 and IEEE 1394, preventing signal attenuation or phase shift. In terms of protection performance, the device complies with IEC 61000–4–2 standards, supporting up to 8kV air discharge and 15kV contact discharge. The clamping voltage is only 65V under a single 8kV contact discharge, and it can withstand more than 1,000 shock events, reliably safeguarding electrostatically sensitive components such as smartphone charging ports and HDTV data interfaces.

From consumer electronics to industrial equipment, the SLESD0402-V05 offers broad application versatility. It protects smartphone USB interfaces, tablet touch circuits, high-speed data links in HDTVs and DVD players, and even industrial sensor signal lines from electrostatic threats. Its nanosecond-level response ensures immediate action at the moment of discharge, and the bidirectional protection design effectively diverts both positive and negative static electricity.

A representative from Slkor’s high-frequency protection product line noted, “The design philosophy behind the SLESD0402-V05 is to make the protection device ‘invisible’ within high-frequency circuits — it occupies virtually no space and introduces no signal interference, yet delivers robust protection when it matters most. This directly addresses the growing trend toward high-speed performance and miniaturization in modern electronics.”

Currently, the SLESD0402-V05 is in stable mass production. It complies with RoHS standards, meets MSL 3 moisture sensitivity requirements, and supports lead-free reflow soldering processes (peak temperature 260℃/10 seconds). For additional technical details and application information, please visit Slkor’s official website (SLKOR Semiconductor: Discrete Semiconductors, TVS, ESD, diodes, components, transistors, MOSFET, IGBT, Rectifier, Discrete Power Devices, SCR, TRIAC, Zener Diode; Integrated Semiconductors, Op-amp, Hall sensor, Linear Regulator / LDO, DC-DC Converter, AC-DC Converter and Optocoupler).
