RLSD32A031C: Ultra-Fast ESD Protection for Next-Generation Precision Manufacturing

 As Industry 4.0 continues to reshape global manufacturing, the intelligence and precision of production equipment are advancing at an unprecedented pace. From automotive electronic control units and 5G communication base stations to industrial robot components and IoT sensors, modern manufacturing systems demand higher performance, reliability, and stability from every electronic component. In this evolving landscape, the RLSD32A031C electrostatic protection diode stands out as a critical solution. With its distinctive electrical characteristics, it helps safeguard sensitive circuits, ensuring consistent manufacturing quality while supporting greater efficiency in next-generation production environments.

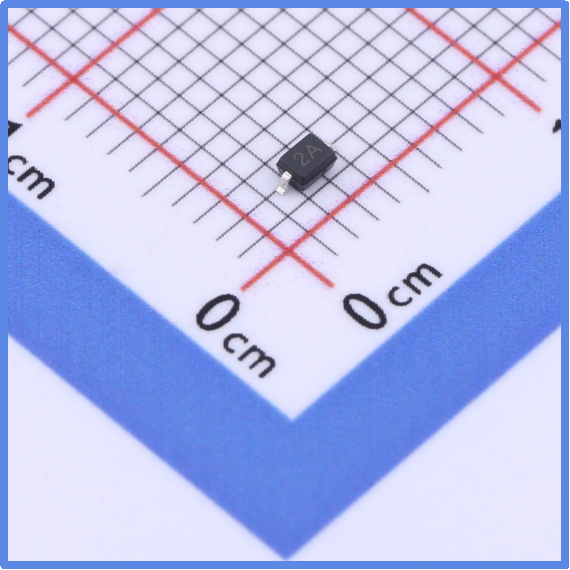

Slkor Electrostatic Discharge Diode RLSD32A031C product photo


I. New Protection Challenges in the Era of Precision Manufacturing


 Modern manufacturing is evolving rapidly, with upgrades taking place across three critical dimensions:

  1. Signal Frequency Leap: The operating frequency of 5G base station equipment has reached 6GHz, while industrial communication buses now exceed 10Gbps. Higher speeds increase sensitivity to interference, making reliable ESD protection more essential than ever.
  2. Current Precision Revolution: Servo motor drive systems now achieve current resolution as fine as 0.1mA, requiring exceptionally stable and low-noise circuit protection to maintain accurate control performance.
  3. Space Optimization: The PCB area of wearable devices has shrunk to the size of a credit card, demanding compact components that deliver strong protection without compromising layout flexibility or system performance.

These transformations introduce two critical challenges:

  • Protection vs. Performance: Traditional TVS diodes with junction capacitance around 100pF can negatively impact signal integrity, especially in high-speed communication lines.
  • Reliability vs. Cost: Advanced protection solutions often come with a price premium, potentially increasing BOM costs by more than 30%.

The RLSD32A031C is engineered to address these pain points with a carefully optimized parameter design. Its 45pF ultra-low junction capacitance (CJ) is approximately 55% lower than conventional devices, significantly reducing signal distortion. At 1GHz, the insertion loss is only 0.3dB, making it well-suited for high-speed digital circuits. In addition, the compact SOD-323 package (2.5 × 1.35 × 1.1mm) reduces the required board area to just 3.375mm², enabling more flexible layouts and supporting high-density assembly in space-constrained designs.

Slkor Electrostatic Discharge Diode RLSD32A031C specification

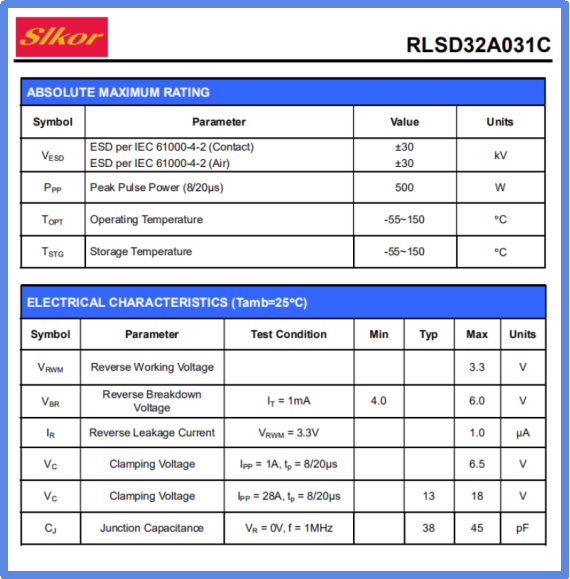

Parameters of Slkor Electrostatic Discharge Diode RLSD32A031C


II. Building a Protective Network with a Parameter Matrix

  1. Ensuring Precision Signal Transmission
     In industrial camera Gigabit network interfaces, the 45pF capacitance of the RLSD32A031C aligns well with the transmission line characteristic impedance (50Ω), helping keep the signal reflection coefficient below 0.1. Test results show that over 100-meter Category 6 cable transmission, eye diagram height attenuation remains under 5%, meeting IEEE 802.3bp standard requirements. For USB 3.1 Gen2 (10Gbps) applications, the device maintains a bit error rate (BER) at the 10⁻¹² level, supporting stable high-speed data communication.
  2. Protecting Microcurrent-Sensitive Circuits
     In medical electronics, current fluctuations as small as 0.1μA can affect detection accuracy. The RLSD32A031C features a 1μA reverse leakage current (IR), an order of magnitude lower than typical industry values. Combined with a precise clamping voltage of 6.5V@1A (VC), it provides reliable protection for bioelectrical signal acquisition circuits. Under 50Hz industrial frequency interference, testing shows a noise suppression ratio (NMR) reaching 62dB, helping ensure clean and stable signal measurement.
  3. Miniaturized Assembly Innovation
     The compact SOD-323 package allows the device to be placed close to BGA pads with a 0.4mm pitch, saving up to 40% of layout space in automotive electronic control units (ECUs). In TWS earbud charging case applications, its 0.55mm profile helps reduce overall device thickness by up to 0.8mm, supporting slimmer designs and advancing the trend toward lightweight, wearable-friendly electronics.


III. Application Analysis in Smart Manufacturing Scenarios


 In the battery management system (BMS) of new energy vehicles, the RLSD32A031C is deployed at the CAN bus interface to create a robust three-level protection architecture:

  • Primary Protection: A low breakdown voltage of 4V (VBR min) helps intercept major electrostatic discharge events at an early stage, reducing stress on downstream components.
  • Secondary Filtering: The 45pF capacitance works with the bus terminal resistor to form an effective low-pass filter, minimizing high-frequency noise and improving signal stability.
  • Tertiary Clamping: A clamping voltage of 6.5V protects the MCU’s ADC sampling circuit from transient overvoltage, ensuring accurate data acquisition.

Test results show that this solution withstands ±8kV contact discharge under the IEC 61000–4–2 standard, improving overall ESD protection effectiveness from 85% to 99.9%. After 100,000 plug-and-play cycles, the voltage drop across the protection circuit varied by less than 0.1V, demonstrating excellent long-term reliability for demanding automotive applications.


IV. Insights on Industrial Upgrade Pathways


 With the rapid adoption of SiC power devices, switching frequencies in industrial power systems are expected to exceed 1MHz, placing higher demands on protection components. The next-generation evolution of the RLSD32A031C is already taking shape, with forward-looking features such as:

  • Dynamic Impedance Matching Technology: Automatically adjusts the clamping voltage based on current variations, improving adaptive protection performance.
  • Integrated Filtering Function: Incorporates ferrite bead functionality within the package to enhance noise suppression.
  • Smart Diagnostics Interface: Provides protection status feedback through a single-wire communication bus, enabling intelligent monitoring.

As manufacturing precision continues to advance, the importance of protection devices like the RLSD32A031C becomes increasingly clear. Acting as an invisible guardian, it safeguards the integrity of every signal pulse while systems pursue “nano-level processing precision and microamp-level control accuracy.” With the rapid expansion of AIoT applications, protection efficiency is expected to improve by another 50%, further strengthening electromagnetic compatibility for next-generation smart manufacturing.
