SMBJ5348B Zener Diode - High Stability & Reliability for Demanding Applications ⚡

 In the world of semiconductor discrete devices, Zener diodes play an essential role in ensuring circuit stability and protection. Among them, the SMBJ5348B Zener diode has recently drawn attention for its reliable performance and robust design. Let’s take a closer look at what makes this highly regarded component stand out.

The SMBJ5348B Zener diode delivers excellent voltage regulation with a nominal Zener voltage of 11V, helping maintain a stable output and consistent circuit operation. It also offers strong power handling capability with a rated power of 5W, making it well-suited for high-power applications and demanding environments.

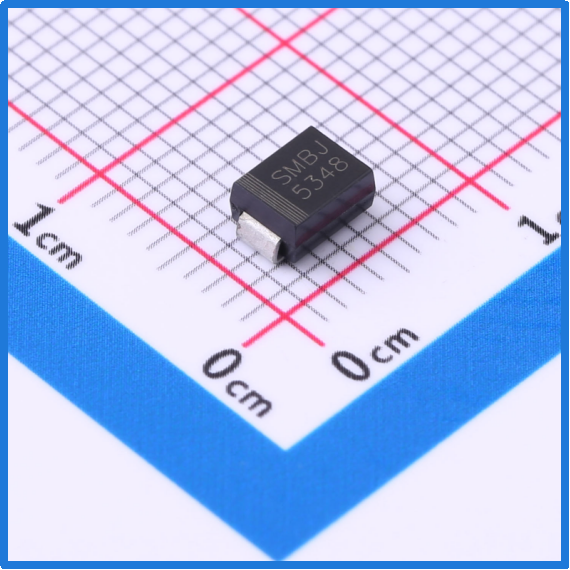

Slkor Voltage Regulator Diode SMBJ5348B product photo

Beyond its strong voltage regulation and power handling capabilities, the SMBJ5348B also stands out in reverse current control, featuring a low reverse current (Ir) of just 5μA. This helps minimize power consumption and reduce heat generation under reverse voltage conditions.

As a result, the diode delivers improved efficiency and enhanced long-term reliability, making it a dependable choice for demanding electronic designs.

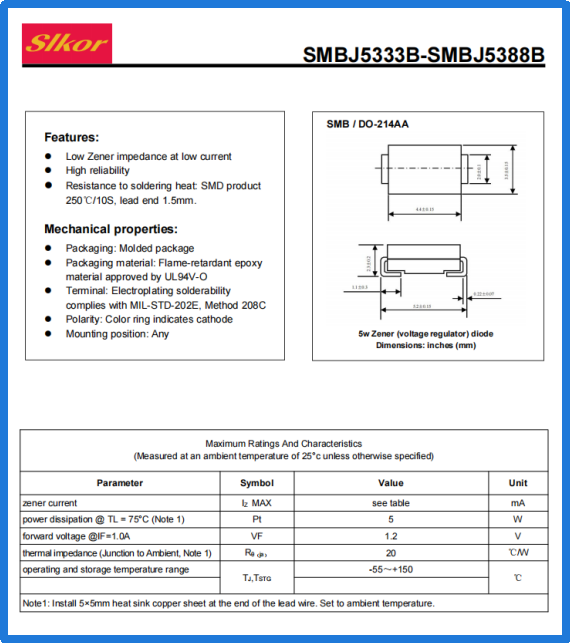

Slkor Voltage Regulator Diode SMBJ5348B specification

In the rapidly evolving semiconductor industry, the SMBJ5348B Zener diode brings fresh momentum with its reliable and high-performance design. Its strong capabilities help it stand out across key applications, including power management, circuit protection, and automotive electronics.

From consumer electronics to industrial control systems, the SMBJ5348B delivers distinct advantages, supporting stable performance and dependable circuit operation in demanding environments.

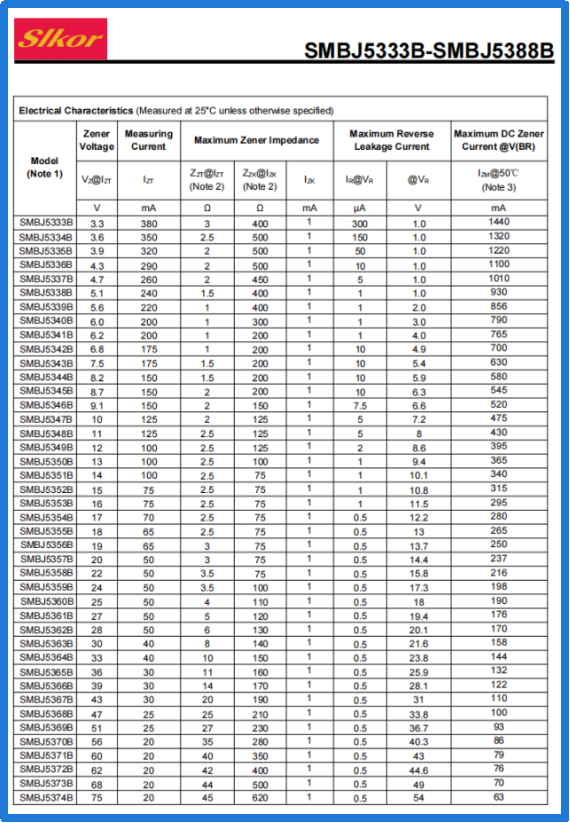

Parameters of Slkor Voltage Regulator Diode SMBJ5348B

Moreover, the SMBJ5348B is built using advanced manufacturing processes and packaging technologies, ensuring consistent performance and dependable reliability.

This enables the product to maintain high quality standards in mass production while meeting stringent customer requirements across demanding applications.

Circuit Design and Application Recommendations for the SMBJ5348B

The SMBJ5348B is an 11V 5W Zener diode. Here are some practical design and application suggestions:

Circuit Design Tips:

• Resistor Selection: Choose an appropriate series resistor with the SMBJ5348B to limit current and prevent overcurrent damage. Select the resistor value based on the required voltage regulation and overall circuit conditions.
• Power Filtering: Add suitable filter capacitors at the SMBJ5348B input to reduce power supply noise and transient voltage effects, improving circuit stability and reliability.
• Heat Dissipation: Consider potential heat generation, especially in high-power applications. Implement effective thermal solutions such as heatsinks or thermal pads to enhance heat dissipation.

Application Tips:

• Avoid Overvoltage: With an 11V regulation value, ensure the application voltage does not exceed this level to prevent damage or performance degradation. Proper circuit protection is recommended.
• Temperature Considerations: Operate within the -55°C to +150°C range to maintain optimal performance and long-term reliability.
• Static Protection: Apply proper electrostatic discharge (ESD) precautions, such as anti-static gloves or mats, when handling the SMBJ5348B to avoid static damage.

Applications of the SMBJ5348B in Circuits:

• Power Protection Circuits: The SMBJ5348B can act as an overvoltage protector, clamping excessive voltage to safe levels and safeguarding downstream components.
• Signal Conditioning Circuits: It limits signal amplitude to prevent damage from excessive signals, commonly used in amplifiers and analog converters to maintain signal accuracy.
• Automotive Electronics: Widely used in automotive protection circuits, the SMBJ5348B helps protect ignition systems, audio units, and navigation equipment from voltage spikes and overvoltage conditions.
