MM1Z16B Voltage Regulator Diode: Reliable Circuit Protection Through Precision Regulation

 In the dynamic world of electronics, the voltage regulator diode acts as a guardian of circuits. With its precise voltage regulation capabilities, it ensures stable output and protects every component within the system. Today, we spotlight a highly regarded voltage regulator diode — the MM1Z16B — exploring its key specifications and its critical role in modern circuit design.

I. Core Specifications of MM1Z16B
 The MM1Z16B excels in precise voltage regulation, with key specifications as follows:

  • Nominal Voltage Regulation: 16V. Under normal operating conditions, the MM1Z16B reliably maintains voltage around 16V, providing a stable environment for the circuit.
  • Voltage Regulation Range: 15.85V–16.51V. This range allows the MM1Z16B to meet diverse circuit requirements, keeping voltage fluctuations within limits and enhancing overall circuit adaptability and stability.

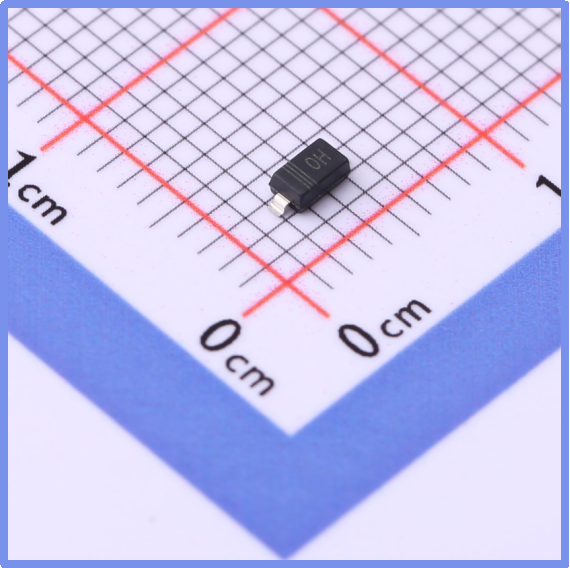

Slkor Voltage Regulator Diode MMBZ5243B product photo


Power Rating: 500mW. This rating ensures the MM1Z16B operates reliably even in high-power circuits, delivering continuous voltage protection without overheating risks.

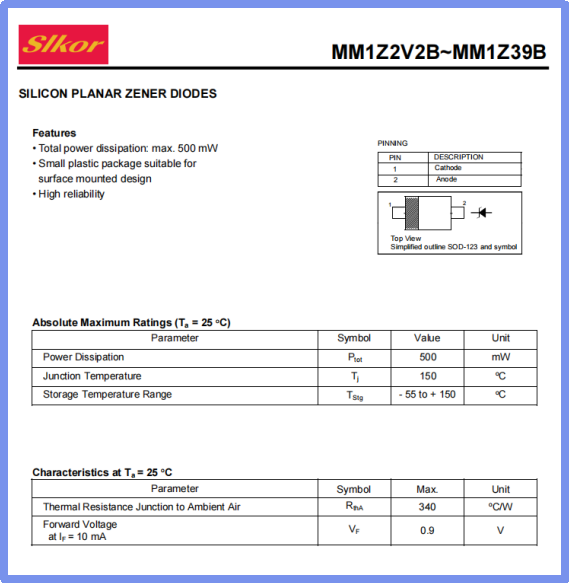

Slkor Voltage Regulator Diode MMBZ5243B specification


Reverse Current (Ir): 0.1μA. The ultra-low reverse current means the MM1Z16B conducts almost no electricity under reverse voltage, effectively preventing leakage and ensuring circuit safety and stability.

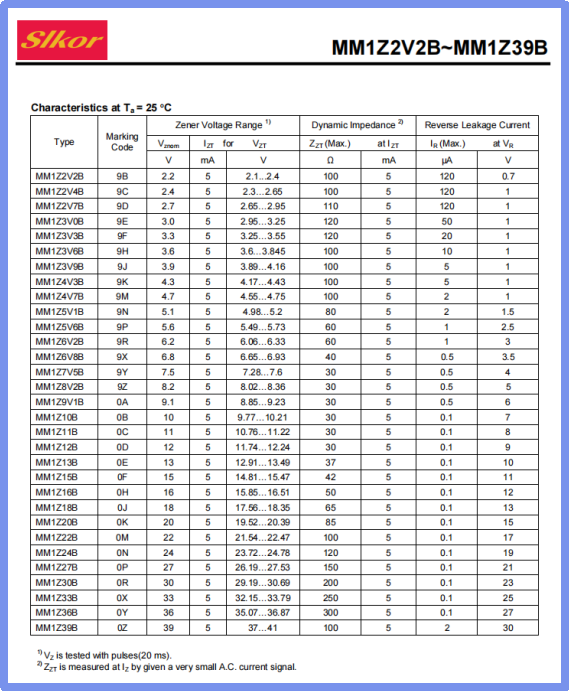

Parameters of Slkor Voltage Regulator Diode MMBZ5243B


II. Performance Characteristics of MM1Z16B

  • Precise Voltage Regulation: The MM1Z16B delivers a stable voltage environment with accurate regulation, ensuring optimal performance of all circuit components.
  • High Reliability: Its ultra-low reverse current and wide regulation range make the MM1Z16B highly reliable, effectively protecting against failures caused by voltage fluctuations.
  • Efficient Heat Dissipation: With a 500mW power rating, the MM1Z16B manages heat effectively in high-power circuits, ensuring long-term stable operation.

III. How Voltage Regulator Diodes Improve Energy Conversion Efficiency through Optimized Circuit Design

Voltage regulator diodes play a critical role in enhancing energy conversion efficiency, largely through optimized circuit design. To understand this process, it’s essential to examine how effective circuit design maximizes diode performance.

Characteristics of Voltage Regulator Diodes

  • Breakdown Voltage: The voltage at which the diode begins to conduct and limit voltage. Selecting the correct breakdown voltage is vital for circuit protection and voltage stability.
  • Regulation Range: Near the breakdown voltage, the diode maintains voltage within a stable range. A wider range increases versatility across different circuits.
  • Power Consumption: Diodes consume some power during operation. This must be accounted for in circuit design to prevent overheating and maintain efficiency.

Optimizing Circuit Design to Improve Energy Conversion Efficiency

  • Selecting the Right Voltage Regulator Diode: Choose a diode with suitable breakdown voltage, regulation range, and power consumption to match circuit requirements. This ensures stable operation and improves energy conversion efficiency.
  • Thoughtful Layout and Heat Management: Position the diode for optimal heat dissipation. Using heatsinks, fans, or other cooling measures reduces operating temperature, enhancing efficiency and reliability.
  • Leveraging Diode Characteristics in Circuit Design: Combine the diode with resistors, capacitors, and other components to implement automatic voltage regulation and over-voltage protection, ensuring normal circuit function under abnormal voltage conditions.
  • Considering Overall Circuit Efficiency: Optimize not only the diode’s performance but the entire circuit. By selecting components carefully, refining the circuit structure, and minimizing power consumption, overall energy conversion efficiency can be significantly improved.

About Slkor:


 Slkor operates R&D offices in Busan, South Korea, and Beijing and Suzhou, China, with most wafer manufacturing, packaging, and testing carried out in China. The company collaborates with professionals and organizations worldwide, supported by a performance and reliability testing laboratory and a central warehouse at its Shenzhen headquarters.

Slkor has filed over 100 invention patents, offers more than 2,000 product models, and serves over 10,000 customers globally. Its products are exported to Europe, the Americas, Southeast Asia, and the Middle East, establishing Slkor as one of the fastest-growing semiconductor companies in recent years.

With well-established management systems and streamlined workflows, Slkor has strengthened the visibility and reputation of its “SLKOR” brand through high-quality products and standardized services. Its portfolio includes three major series — diodes, transistors, and power devices — alongside recent additions such as Hall elements and analog devices, expanding its presence in sensors, RISC-V microcontrollers, and other emerging product categories.
