Unlocking the Power of the 1SMA4734A Voltage Regulator Diode: How It Works and Where to Use It

 In today’s electronic circuits, voltage regulator diodes — commonly known as Zener diodes — are indispensable. Thanks to their precise voltage stabilization, they ensure consistent, reliable performance across a wide range of devices, safeguarding circuit stability. This article explores the standout features and practical applications of the 1SMA4734A voltage regulator diode.

Slkor Voltage Regulator Diode 1SMA4734A product photo

I. Key Features of 1SMA4734A

  • Nominal Voltage: The 1SMA4734A delivers a stable 5.6V output under normal operating conditions, providing reliable voltage regulation for your circuits.
  • Voltage Range: Although its nominal voltage is 5.6V, the diode operates within a range of 5.32V to 5.92V, allowing for slight fluctuations in practical applications.
  • Accuracy: With a ±5% tolerance, the diode ensures deviations remain minimal, meeting the stability needs of most electronic devices.
  • Power Rating: Rated at 1W, the 1SMA4734A safely handles circuit power demands, but exceeding this limit could lead to overheating or damage.
  • Reverse Leakage Current (Ir): At a reverse voltage of 2V, leakage current is 10μA, making it suitable for precision circuits that require tight current control.
  • Impedance (Zzt): With an impedance of 5Ω, the diode maintains effective voltage stabilization, ensuring smooth performance in your designs.

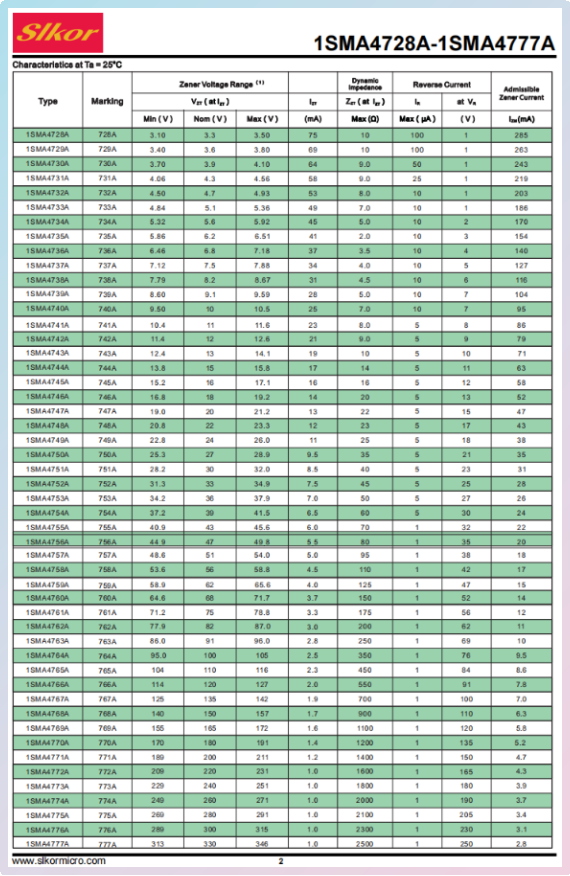

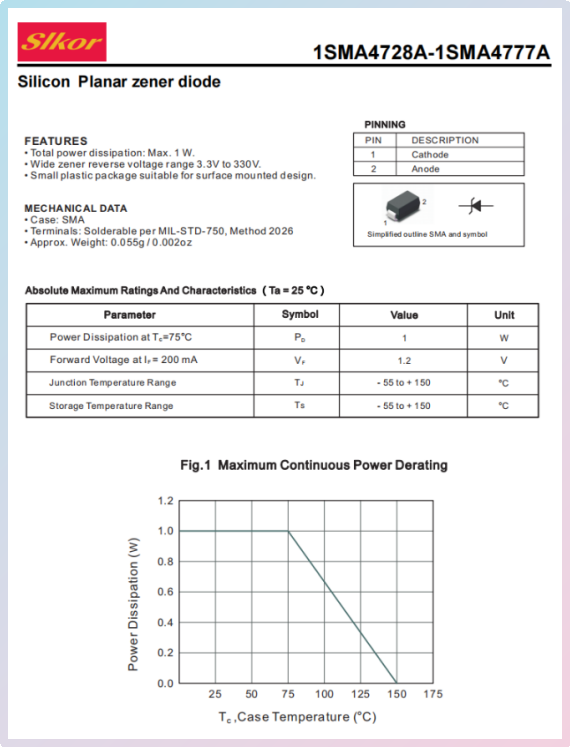

Slkor Voltage Regulator Diode 1SMA4734A specification


Parameters of Slkor Voltage Regulator Diode 1SMA4734A


II. Applications of 1SMA4734A

Thanks to its stable voltage output and reliable 1W power handling, the 1SMA4734A is widely used across various electronic devices and circuits:

  • Power Circuits: Ensures a consistent voltage supply, keeping other components in the circuit operating smoothly and reliably.
  • Reference Voltage Sources: Provides precise voltage benchmarks for circuits requiring accurate measurements or control.
  • Protection Circuits: Safeguards sensitive components by clamping voltages that exceed safe thresholds, preventing damage.
  • Temperature Compensation: Ideal for circuits that require stability across temperature changes, thanks to predictable voltage variation with temperature.

III. Working Principle of Voltage Regulator Diodes

Voltage regulator diodes — commonly called Zener or breakdown diodes — rely on the Zener breakdown effect to maintain circuit stability. When the reverse voltage reaches a specific threshold (the Zener voltage), the diode allows a sudden surge of current while keeping the voltage nearly constant. Made from silicon with a PN junction structure, these diodes safely operate in the breakdown region, letting current flow at higher reverse voltages while stabilizing the voltage output for reliable and precise performance.

IV. Application-Working Principle Relationship

Voltage stabilizers: The primary application of voltage regulator diodes is as stabilizers, leveraging the Zener breakdown effect to ensure stable voltage outputs, thereby protecting other circuit components from voltage fluctuations or surges.

Reference voltage sources: Fixed voltage outputs of Zener diodes serve as reliable reference voltage sources in circuits for comparison or calibration purposes.

Regulating devices: They can also function as regulators to adjust or limit voltage ranges within circuits, meeting specific voltage regulation needs.

Surge protection circuits: Voltage regulator diodes can limit or protect circuits by conducting when the power supply voltage exceeds their Zener voltage, safeguarding against overvoltage damage.

Arc suppression circuits: By paralleling with inductive loads, such diodes absorb high voltages generated during switch opening, effectively suppressing arcs.

This comprehensive overview highlights the critical role of 1SMA4734A and similar voltage regulator diodes in ensuring the stability and reliability of electronic circuits across various applications.
